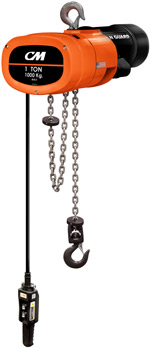

Quick ship CM Manguard

Capacities: 1/4 to 3 tons

10 feet lift (additional lifts available)

5 to 32 fpm lifting speed

Hook suspension

Ac power supply (115/230 1-60 HZ; 230/460 3-60 reconnectable voltage)

Built-in compliance (ASME/ANSI B30.16, ASME HST-1 and NEC electrical codes)

Overload protection

Ready for heavy duty applications

Longer service life

Improved serviceability

Superior load control

Eco-friendly energy saver

Made in the U.S.A.

¼ Ton – 3 Ton Electric Chain Hoist

Single or Three Phase, KELC

Heavy Duty Motor Brake - AC spring set disc brake for positive braking action and long life with minimal maintenance. Easy 1-step adjustment procedure. Mechanical Load Brake (Weston Type) available as an option

Gearing - Totally enclosed, oil bath lubricated for long life.

High Torque, Heavy Duty Hoist Motor - Motors are H4 30-minute rated with class "F" insulation and include a thermal actuated switch-(TAS) embedded in the motor winding for protection.

Load Sprocket & Chain Guide - Provided with a full floating chain guide that assures proper engagement of chain on load sprocket.

Lower Block - Provided with a 360° rotating hook riding on thrust bearings. As standard, the hook is provided with a spring-loaded latch

Push-Button Controls - Standard push-button control station is contoured for operator comfort allowing easy one-handed sure grip control and provided with a weatherproof NEMA-4X enclosure. The push-button cable is provided with built-in strain relief to help prevent cable damage.

Suspension - Hook suspension permits portability of the hoist while lug suspension reduces headroom and can be used with any of their rigid-mount trolleys. New design allows easy change out of either hook or lug suspension.

Paddle Limit Switch - Paddle upper and lower control limit switch standard on all hoists.

Powder Coat Finish - Provides a long lasting durable finish and added resistance to corrosive environments.

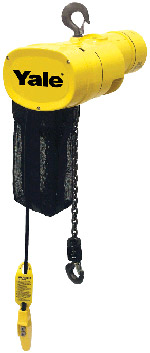

¼ Ton – 2 Ton Electric Chain Hoist

Single or Three Phase, YJL

Mechanical Overload Protection Device – Helps protect hoist, operator, and supporting structures from damaging overloads, chain jamming and reverse phasing.

Limit Switches – Adjustable to regulate upper and lower load travel. Brass nuts standard for improved repeatability and chain positioning.

Multiple Disc Motor Brake – Heavy duty design for reliable operation. Direct acting for positive load holding and spotting.

Chain End Stop Assembly – Fits below dead end link on lifting chain for added measure of protection.

Oil Bath Transmission – Precision machined alloy steel gears run in oil bath for longer, quieter operation.

Wrap-Around Side Plates – Act as safety lugs and as bumpers to protect wheels. Available to fit American Standard I-Beams, wide-flange, and patented track beams.

CM XL LOAD STAR

Columbus McKinnon introduces an expanded line of Lodestar XL electric chain hoists for lifting applications from 2 to 71⁄2 tons. The new offering provides heavy-duty hoists featuring faster speeds, less reeving, and higher capacities than traditional chain hoists. Workers in automotive plants, heavy equipment manufacturing, paper mills, and related rugged work environments will experience the same dependability and versatility that they have relied on for many years.

Lifting capacities up to 71⁄2 tons

Increased lifting speeds throughout the line

Double reeved units with 3-5 ton lifting capacities

Maximum lifting speed of 30 feet per minute

Heavy-duty, multiple disc braking system

Forged ten-pocket oblique-lay liftwheel for smooth chain operation, constant chain speed, and reduced chain wear

Gearing operated in oil bath for increased lifting life and quiet operation

Rated H-4, heavy-duty

Standard overload protector

Screw-type limit switches

Thermally protected motor

Factory tested at 125% of rated capacity

Made in U.S.A.

Lifetime warranty
