CM  AIR XL LODESTAR

Columbus McKinnon introduces a new line of Lodestar Air XL chain hoists for lifting applications from 2 to 7 1⁄2 tons. The offering provides heavy-duty hoists featuring variable speeds and higher capacities than traditional air chain hoists. Workers in auto motive plants, heavy equipment manufacturing, chemical plants, refineries, and related rugged work environments will experience the same dependability and versatility that they have relied on from CM products for many years.

Features:

Lifting capacities up to 71⁄2 tons

Variable lifting speeds

Maximum lifting speed of 31 feet per minute

Forged ten-pocket oblique-lay liftwheel for smooth chain operation, constant chain speed, and reduced chain wear

Standard overload protector

Clutch acts as upper and lower limits

Six-vane rotary air motor

Pendant controls provide precise load spotting

Air actuated motor brake for positive load control

Factory tested at 125% of rated capacity

Spark resistant models available

Lifetime warranty

Standard Lift: 10 ft.

Air inlet size: 1˝ NPT

Air supply hose size: 1˝ I.D. min.

Consumption:175 CFM at 90 PSI

Exhaust:11/4˝ NPT

Made in U.S.A.

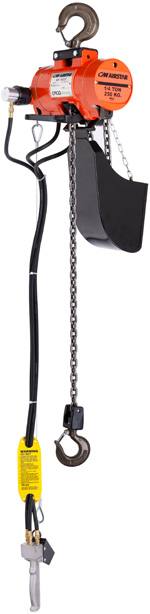

CM AIRSTAR

The CM AirStar now boasts a longer service life and superior air leak protection. Design enhancements, including upgrades to the control manifold and air seals, give the AirStar best-in-class performance even for the most demanding applications.
With capacities from . to 1 Ton, this variable speed air chain hoist is compact, lightweight and ideal for heavy duty industrial and workstation duties.

Features:

Capacities (from 1/4 to 1 ton)

Lift (10 feet standard lift. Other lifts available)

low operating costs

Fast lifting speeds

Portable & rugged

Built to last

Secure & reliable

Easy to handle

CHESTER HOIST - ALH Pneumatic Air Chain Hoist

Features:

CAPACITIES & LIFT - Rated loads 1 ton to 24 tons with standard lift of 10 feet.

ULTRA-LOW HEADROOM - Design allows this hoist to operate in extreme low overhead locations where most other “low headroom” hoists can’t.

COMPACT DESIGN - Integral hoist/trolley design provides compact overall envelope dimensions.

STRONG AND DURABLE - Steel construction to withstand harsh environments.

HOISTING CONTROL - Pilot air control permits variable speed hoisting and trolley traverse.

LIMIT SWITCH - Redundant limit switches for upper and lower hook travel.

TROLLEY - Plain, hand geared, or motor driven trolley models featuring anti-tilt rollers.

CUSTOM FIT - Can be made to fi t virtually any beam.

EASY INSTALLATION - Unique design allows easy installation on closed end monorail beam.

OPTIONS - Spark resistant packages, corrosion resistant finishes, swivel trolleys for curved monorails, e-stop on control pendant, chain container, rubber trolley bumpers and anti-drop lugs.
